X.21 Interface OverviewX.21 is a state-driven protocol running full duplex at 9600 bps to 64 Kbps with subscriber networks. It is a circuit-switching protocol using Synchronous ASCII with odd parity to connect and disconnect a subscriber to the public-switching network. The data-transfer phase is transparent to the network. Any data can be transferred through the network after Call Establishment is made successfully via the X.21 protocol. The call-control phases which are used were defined in the CCITT (now ITU) 1988 "Blue Book" Recommendations X.1 - X.32. CCITT X.21
is a physical and electrical interface that uses two types of circuits: The physical interface between the DTE and the local PTT-supplied DCE is defined in ITU-T recommendation X.21. The DCE provides a full-duplex, bit-serial, synchronous transmission path between the DTE and the local PSE. It can operate at data rates from 600bps to 64Kbps. A second standard, X.21bis has been defined for use on existing (analogue) networks. An X.21bis is a subset of EIA-232D/V.24 therefore allowing existing user equipment to be readily interfaced using this standard. It should perhaps be emphasized here that V24 defines the data terminal equipment interface to the modem and is not concerned with the interface between the modem and the line itself. The modems themselves therefore form part of the conceptual physical connection. The V24 interface is thus independent of both modulation technique and data throughput rate. The X.21 interface protocol is concerned only with the set-up and clearing operations between DTE and DCE associated with each call. The control of the ensuing data transfer is the responsibility of the link layer. Signals ProvidedThe signals of the X.21 interface are presented on a 15-pin connector defined by ISO Document 4903. The electrical characteristics are defined in CCITT Recommendations X.26 and X.27, which refer to CCITT Recommendations V.10 and V.11. X.21 provides eight signals:
X.21 Protocol OperationAs stated previously, X.21 is a state protocol. Both the DTE and DCE can be in a Ready or Not-Ready state. The Ready state for the DTE is indicated by a continuous transmission of binary 1's on the T lead. The Ready state for the DCE is continuous transmission of binary 1's on the R lead. During this continuous transmission of Ready state, the control leads are OFF. During the Not-Ready state, the DCE transmits binary 0's on the R lead with the I lead in the OFF state. The DTE Uncontrolled Not-Ready is indicated by transmission of binary 0's with the C lead in the OFF state. The DTE Uncontrolled Not-Ready state signifies that the DTE is unable to accept calls due to an abnormal condition. The DTE Controlled Not-Ready state sends a pattern of alternating 1's and 0's on the T lead with the C lead OFF. This state indicates that the DTE is operational, but unable to accept incoming calls. The characters sent between the DTE and DCE during call-control phases are International Alphabet 5 (IA5), defined by CCITT Recommendation V.3. At least two Sync characters must precede all sequences of characters sent between the DTE and DCE to establish 8-bit byte synchronization between the transmitter and the receiver. If the Byte Timing (B) lead is used, these Sync characters must align with the B lead timing signals. Electrical Characteristics. Data signaling rates of 9600 bit/s and below. X.27 (= V. 11) & X.26 (= V. 10) Data signaling rates above 9600 bps. X.27 (= V. 11) [V.10 specifies an interface circuit with an unbalanced transmitter with a differential receiver.] [V.11 specifies an interface circuit with a differential, balanced signal from transmitter to receiver which may accommodate an optional DC offset voltage. This approximates EIA-4221 X.21 OverviewX.21 is a state-driven protocol running full duplex at 9600 bps to 64 Kbps with subscriber networks. It is a circuit-switching protocol using Synchronous ASCII with odd parity to connect and disconnect a subscriber to the public-switching network. The data-transfer phase is transparent to the network. Any data can be transferred through the network after Call Establishment is made successfully via the X.21 protocol. The call-control phases which are used were defined in the CCITT (now ITU) 1988 "Blue Book" Recommendations X.1 - X.32.
Signals ProvidedThe signals of the X.21 interface are presented on a 15-pin connector defined by ISO Document 4903. The electrical characteristics are defined in CCITT Recommendations X.26 and X.27, which refer to CCITT Recommendations V.10 and V.11. X.21 provides eight signals:
X.21 Protocol OperationAs stated previously, X.21 is a state protocol. Both the DTE and DCE can be in a Ready or Not-Ready state. The Ready state for the DTE is indicated by a continuous transmission of binary 1's on the T lead. The Ready state for the DCE is continuous transmission of binary 1's on the R lead. During this continuous transmission of Ready state, the control leads are OFF. During the Not-Ready state, the DCE transmits binary 0's on the R lead with the I lead in the OFF state. The DTE Uncontrolled Not-Ready is indicated by transmission of binary 0's with the C lead in the OFF state. The DTE Uncontrolled Not-Ready state signifies that the DTE is unable to accept calls due to an abnormal condition. The DTE Controlled Not-Ready state sends a pattern of alternating 1's and 0's on the T lead with the C lead OFF. This state indicates that the DTE is operational, but unable to accept incoming calls. The characters sent between the DTE and DCE during call-control phases are International Alphabet 5 (IA5), defined by CCITT Recommendation V.3. At least two Sync characters must precede all sequences of characters sent between the DTE and DCE to establish 8-bit byte synchronization between the transmitter and the receiver. If the Byte Timing (B) lead is used, these Sync characters must align with the B lead timing signals.
Procedure for a DTE Placing a CallThe following procedure is used when a DTE places a call:
During the Selection Sequences, the network will continue to transmit plus (+) characters followed by Call Progress signals. The Call Progress signal is a value or set of values separated by commas (,) and terminated with a plus (+). The values indicate if a call has been successful or if it has failed, and the reason for the failure. This signal must be sent from the DCE to the DTE within 20 seconds of the end of the Selection Sequence and may be followed by DCE-provided information. The DCE also passes this information to the DTE being called, which will detail who is making the call. When the network has established a connection between two DTEs, it will signal the calling DTE with a Ready for Data signal by setting the I lead to ON. The two DTEs are now connected until the call is cleared by one or the other.
DTE in the Ready State Receiving an Incoming CallThe DTE will signal Ready state with continuous binary 1's on the T lead with the C lead in the OFF state. The DCE responds with a Ready state via continuous binary 1's on the R lead and the I lead in the OFF state. When a calling DTE wants to establish a connection to another DTE, the DCE will signal the called DTE with continuous BEL characters. The called DTE accepts by changing the C lead to the ON state. The DCE indicates to the called DTE who is calling and indicates that a connection is established by changing the I lead to the ON state. When both DTEs have entered the Ready for Data state, the Data Transfer state is entered. The DCE or either DTE may terminate the call by signalling a CLEAR. If either DTE clears the call, it will send continuous 0's on the T lead and set the C lead to OFF. The DCE responds with Clear Confirmation by sending continuous 0's on the R lead and setting the I lead to OFF. After sending a Clear Confirmation, the DCE will signal Ready state within 2 seconds. The clearing DTE must respond with Ready state within 100 milliseconds. The cleared DTE will receive Cleared signal by the DCE and must send a Clear Confirmation to the DCE within 2 seconds. The DCE will signal Clear Confirmation within two seconds and must receive a Ready state from the cleared DTE within 100 milliseconds.
Equivalent/Corresponding EIA-232 or CCITT V.35 signals Transmit = TD Receive = RD Control = RTS Indication = CD Signal Element Timing = TC & RC (see note 2) Byte timing: rarely used. DTE signal element timing : even more rarely used. Not supported.

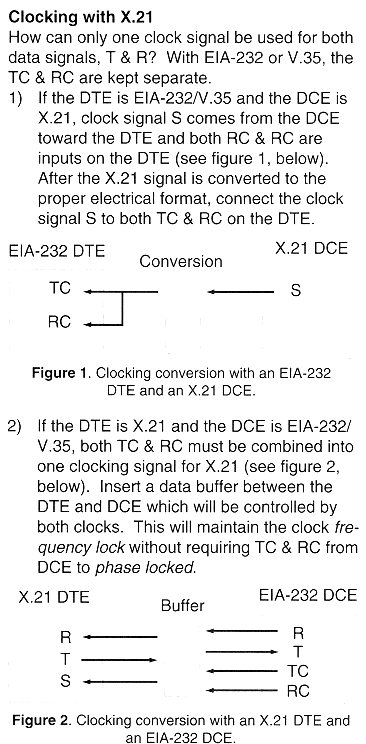

X.21
|
Voltages: | +/- 0.3Vdc |
Speeds: | Max. 100Kbps (X.26) |
Max. 10Mbps (X.27) |
The X.21 interface was recommended by the CCITT in 1976. It is defined as a digital signaling interface between customers (DTE) equipment and carrier's equipment (DCE). And thus primarily used for telecom equipment.
All signals are balanced. Meaning there is always a pair (+/-) for each signal, like used in RS422. The X.21 signals are the same as RS422, so please refer to RS422 for the exact details.

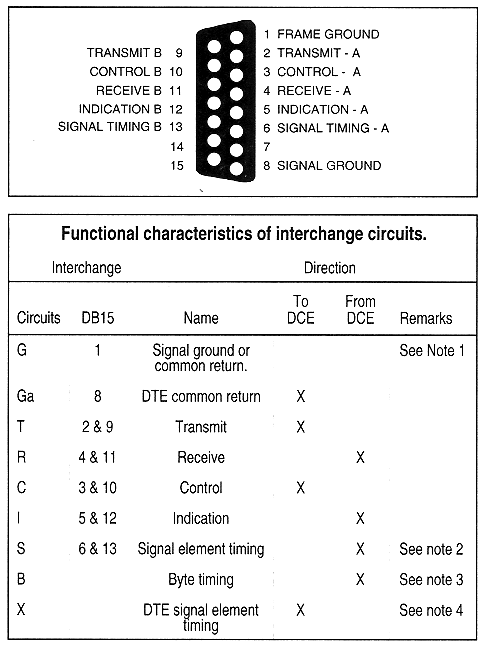

Pinning according to ISO 4903
Sub-D15 Male | Sub-D15 Female |
Pin | Signal | abbr. | DTE | DCE |
---|---|---|---|---|
1 | Shield | - | - | |
2 | Transmit (A) | Out | In | |
3 | Control (A) | Out | In | |
4 | Receive (A) | In | Out | |
5 | Indication (A) | In | Out | |
6 | Signal Timing (A) | In | Out | |
7 | Unassigned | |||
8 | Ground | - | - | |
9 | Transmit (B) | Out | In | |
10 | Control (B) | Out | In | |
11 | Receive (B) | In | Out | |
12 | Indication (B) | In | Out | |
13 | Signal Timing (B) | In | Out | |
14 | Unassigned | |||
15 | Unassigned |
Functional Description
As can be seen from the pinning specifications, the Signal Element Timing
(clock) is provided by the DCE. This means that your provider (local telco
office) is responsible for the correct clocking and that X.21 is a synchronous
interface. Hardware handshaking is done by the Control and Indication lines. The
Control is used by the DTE and the Indication is the DCE one.
Cross-cable pinning
X.21 Cross Cable | |
---|---|
X.21 | X.21 |
1 | 1 |
2 | 4 |
3 | 5 |
4 | 2 |
5 | 3 |
6 | 7 |
7 | 6 |
8 | 8 |
9 | 11 |
10 | 12 |
11 | 9 |
12 | 10 |
13 | 14 |
14 | 13 |
15 |
