Canoga Perkins 2270 fiber modem

The Canoga Perkins 2270 fiber modem operates synchronously up to 20 Mbps, or asynchronously up to 5 Mbps. The Canoga Perkins 2270 fiber modem is available with 850nm multimode optics and 1310nm single mode optics. With a 1310nm laser on single mode cable, transmission distances to 45 km or more are possible.

horizontal rule

2270 High Speed Fiber Modem

bulletSync Speeds Up to 20 Mbps
bulletInterchangeable interfaces
bulletSystem test, local/remote loopback
bulletInternal/external/slave clock modes
bulletSingle/multi-mode fiber optics
bullet850nm, 1300nm
bulletRack mount/stand alone
bulletRedundancy (optional)
bullet120VAC, 240VAC or -48VDC

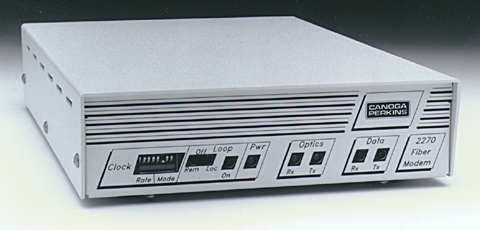

Canoga Perkins 2270 fiber modem

horizontal rule


Description

Featuring data through-put speeds up to 20 Mbps with selected interfaces, the Canoga Perkins 2270 fiber modem is ideal for modern cryptographic environments and other applications requiring extremely high speeds.

It operates synchronously up to 20 Mbps, or asynchronously up to 5 Mbps. The Canoga Perkins 2270 fiber modem is available with 850nm multimode optics and 1310nm single mode optics. With a 1310nm laser on single mode cable, transmission distances to 45 km or more are possible.

The Canoga Perkins 2270 fiber modem will operate with a large variety of field interchangeable interfaces. For example, a user could field change a V.35 interface to a RS-422 interface in a matter of minutes.

For applications that require multiple modems, the 2201 Rack Assembly holds up to ten 2200 Series Modems. Standard features of the 2201 include audio, visual and dry contact alarms in the event of power supply failure. Redundant power is also available as an optional feature.

Input power can be 120 VAC or 240 VAC or -48VDC. Fiber optic connectors can be ST or FC.

horizontal rule

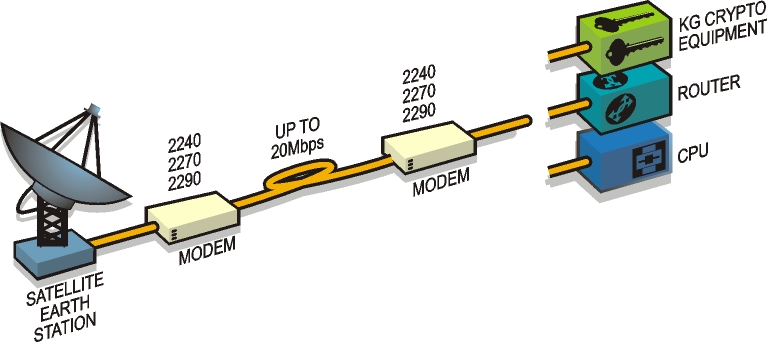

Typical Application




Canoga Perkins 2270 fiber modem part numbers and  Ordering Information
