T1 Channel Bank

T1 Channel Banks by Rhino are the most cost effective T1 channel banks on the market and with it's 5 year warranty makes it one of the most rugged - that's why the name RHINO.

horizontal rule

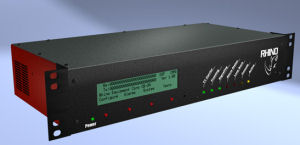

The Rhino T1 channel bank acts as a T1 mux, converting 24 digital channels to 24 (FXO and /orFXS) analog channels. Our T1 channel bank comes with a 5 year warranty, and our new price is hundreds of dollars less than most refurbished channel banks.

This T1 Channel Banks is much easier to install than any other channel bank on the market today. There is no programming or software to learn. With our new "Auto-Config" feature, you can just plug it in, and the channel bank is ready to go. If you are needing more than just a voice application, the Rhino Channel Bank now supports data, and is configurable channel by channel. It is the most flexible channel bank on the market.

The Rhino T1 channel bank uses the latest, fully digital embedded technology. This means higher reliability and lower cost. The Rhino provides as "standard" what other units can't provide OR charge extra for.

A 5 year warranty is proof the unit is rock solid.

By supporting the most common start protocols (Immediate, Wink, Loop, Ground, DID), as well as either D4 or ESF and AMI or B8ZS, the Rhino channel bank can be installed in a wide variety of situations including dynamic data channels. "Auto Config" makes the unit truly "plug and play" - the only channel bank of it's kind!

horizontal rule

T1 Channel Bank Specifications

bulletOperating Environment: 0 C 70 C 32 F 166 F
bulletHumidity: Non-condensing up to 95% relative humidity
bulletPower Requirements: 110 VAC
bulletPower Usage: Fuse Rating: 1A
bulletT1 Requirements: Standard 4 wire T1 via an RJ48C jack
bulletStart Protocols: Immediate, Loop, Ground, Wink, and DID
bulletFraming protocols: D4 or ESF
bulletLine Coding: AMI or B8ZS
bulletAnalog Output: 24 Loop start lines via 25 pair amphenol connector
bulletData Output: V.35 utilizing a DB25 connector
bulletPhysical size: 3.5 tall (2U), 17 wide and 8.5 deep
bulletWeight: 12 lbs.
bulletMounting: 19 or 23 rack mountable. Unit can also be mounted on the wall.
bulletChannel capacity: 24 POTS FXS
bulletCaller ID capable







horizontal rule

A LCD display is used during the installation process. Most problems that arise during an installation are the result of mismatched protocols between the channel bank and the carrier's T1 line. The display shows what is being sent in on the T1 and what is going out from the channel bank.

Rhino T1 D4 channel bank T1 Channel Bank can operate on a D4 (SF) or ESF T1 line. The bank supports either SF or ESF with either AMI or B8ZS line coding. The start protocols supported are: Immediate Start, Wink Start, Loop Start, Ground Start and DID. (These are standard and are used by all T1 service providers.) On the analog side the Rhino presents 24 loop start lines (FXS).

The Rhino Channel Bank interfaces directly with most PBXs and almost all voice mail systems. Calling party disconnect is also supported by the Rhino.
